The machine specification
The hydraulic system is high standard,high quality which is researched and developed by the team who combined with years of experience. It can make the oil pressure reach to the best work effect.
The oil supply system adopts advance industrial lubrication system and reduces the wastage of the machine frame to protect the steel pin wear-resisting and to make the frame smooth operation,high speed high efficiency and reduce cost.
The frame takes use of the five clamping technology ,combined with excellent hydraulic system.to make the clamping force achieve a better effect ,to reduce loss of parts and to reduce the cost.Adopting point dynamic locking mould,point move opening mould,make the machine more safety.Use separate ejection system, can adjust ejector for many times,to prolong the service life of mould.

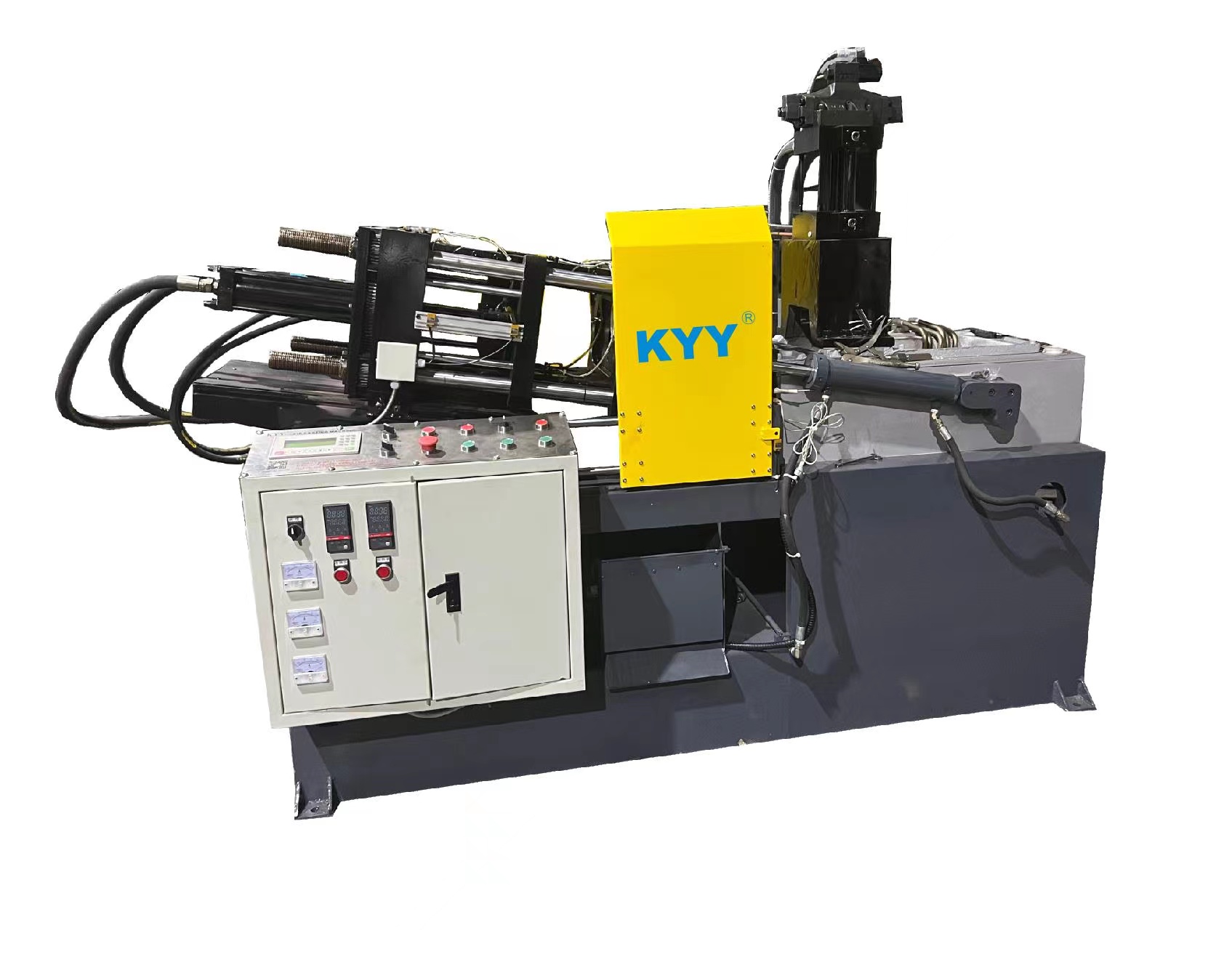

20 T automatic hot chamber die casting machine is used for zinc alloy and low melting point non-ferrous metal casting, widely used in hardware, telecommunications, toys, precision machinery and other industries.

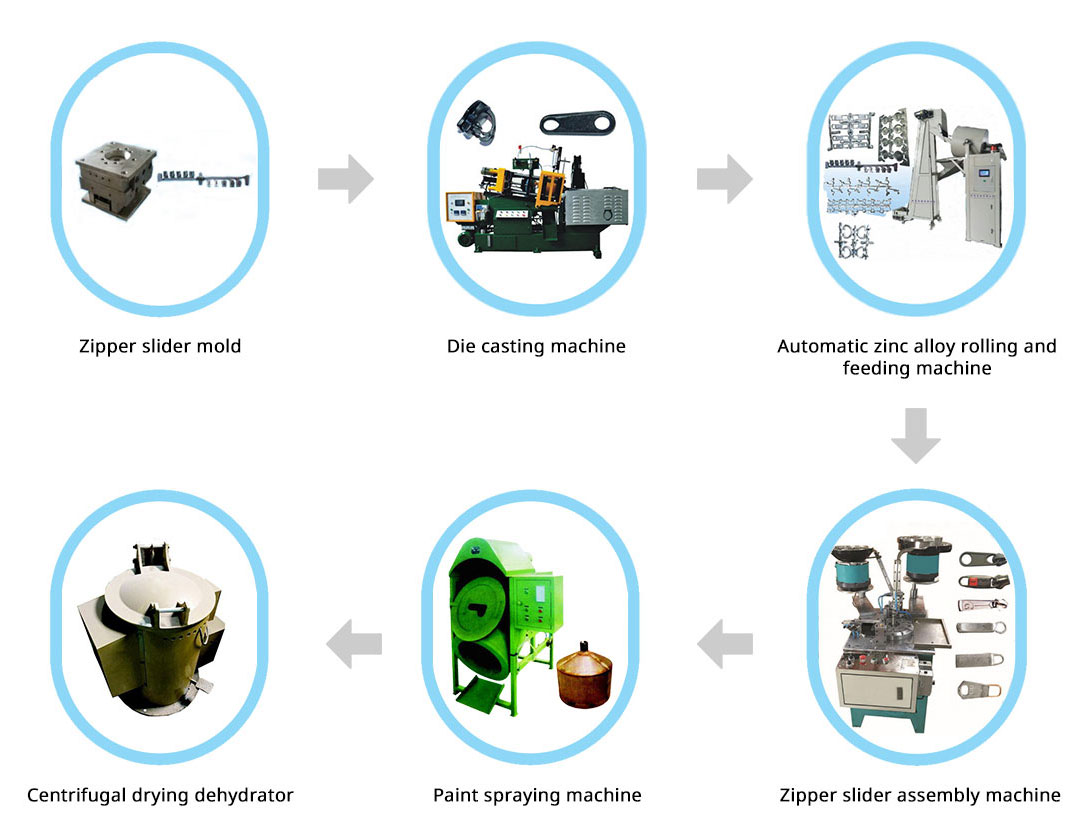

The machine is developed and improved on the basis of similar products.Electrical, hydraulic components are mostly imported high quality products, the computer using Japan omron.With high reliability, high productivity, high degree of automation.Especially suitable for die-casting various complicated shape zipper head and hardware.
The machine features
Full automatic high speed die casting
Automatic mold adjustment, automatic lubrication
Melt electric heating or fuel heating optional

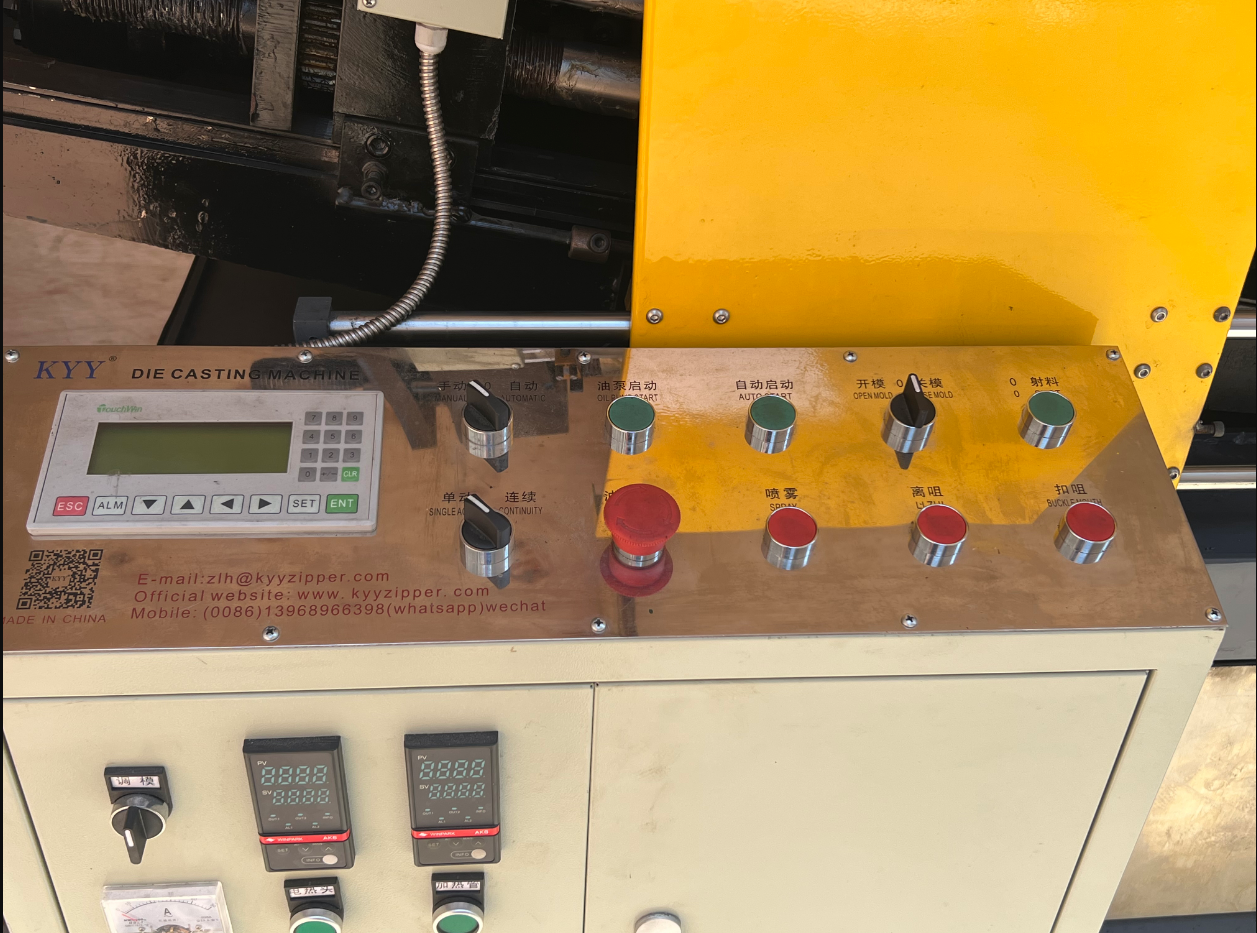

Conventional machine electrical control or PLC computer control optional
Full automatic high speed die casting machine, new improved is high efficiency high precision die casting equipment
The machine is composed of die closing mechanism and injection mechanism, which automatically controls the hydraulic cooling and spraying.
The machine has manual, semi-automatic, automatic and other operating functions, easy to operate.
Imported electrical appliances, safe and reliable, durable.
The sequence control system automatically controls the linkage and safety locking of each action
The control element and solenoid valve are supplied by switching power supply for 24V dc, which is safe and reliable.
The whole assembly can be moved back and forth.
Center adjustment die thickness device, easy to adjust die
Template, shaft and other important parts are processed by precision machining center manufacturing.,
Micro switch, oil seal, etc. are imported brand products, better performance assurance,
Crucible made of high quality stainless steel, durable.
Diesel furnace, coke furnace crucible built-in electric heat pipe and other forms for purchase
