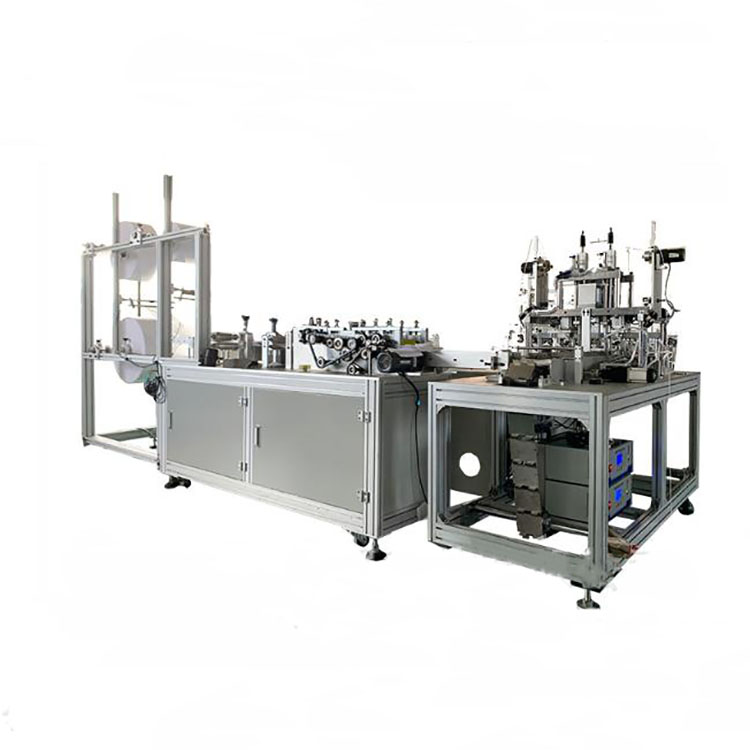

High Speed Automatic 3 Ply Surgical Medical Disposable Non Woven One Line Face Mask Making Machine China Price

the speed can up to 120-150 pcs/minute

Model:
KYY-KZ02
Brand:
KYY

Availability:

Quantity:



Inquire Add to Basket

Features

The high-speed plane mask one drag one external ear belt machine is a newly developed full-automatic high-speed plane ear belt mask production line, including automatic feeding of raw materials, automatic transportation, folding and cutting of nose beam strips, mask edge welding, ultrasonic fusion, forming, cutting and other full process automation, completing the whole production process from coil raw materials to finished masks.

Features of equipment products:

1. The whole equipment is fully automatic.

2. The whole machine adopts aluminum alloy structure, which is beautiful and firm without rust.

3. Computer PLC programming control, servo drive, high degree of automation.

4. Automatic tension control of raw material to ensure the balance of raw material tension.

5. Photoelectric (optical fiber) detection of raw materials to avoid errors and reduce waste.

6. High speed servo components are used to improve the efficiency.

Specification

Model:	KYY-KZ02
Name:	3 Ply mask making machine
Size:	5300mm(L)×2000mm(W)×1900mm(H)
Appearance color	international standard warm gray 1C (DB standard color), if there is no special description, this standard shall be followed;
Machine Weight:	Less than 2400KG, ground bearing capacity ≤ 300kg / m2;
Working power supply:	The equipment is 220 VAC ± 5 ‰, 50 Hz, and the rated power is about 9 kW;
compressed air:	5-0.7 MPa, the flow rate is about 300L / min;
Operating environment:	temperature 10-35 ℃, humidity 5-35% HR, no combustible, corrosive gas, no dust (cleanliness no less than 100000 level)
Qualified rate of equipment production:	99% (except when the incoming materials do not meet the requirements and improper operation of employees)
Equipment failure rate:	2% (refers to the fault caused by the equipment itself)
